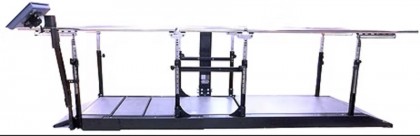

DST Triple Sense
DST Triple Sense system is the only mechanism which enables gait analysis and diagnosis of movement impairments in all three areas: parallel bars, stairs, and slope. The system provides data regarding uneven weight distribution, step length and time, center of pressure , weight distribution of the foot, and more. The obtained information will help you identify the root cause of patient’s impairment, create an accurate treatment plan, keep track of a patient’s progress, and reveal the risk factors inherent in dangerous situations, such as falls. The bottom line is simple: optimal treatment efficiency, maximum rehabilitation potential, and reduction of rehab costs and duration.
Flat walking surface: | 3 Meter (9.8 ft.) | Touchscreen monitor: | OS: Windows 10 |
Total/Handrails length: | 360 cm (142 inches) | Screen size: 12’’-15’’ | |
Total width: | 105 cm (42 inches) | Power supply: 110-230 AC with 12VDC transformer | |
Stairs/slope width: | 65 cm (25.6 inches) | Sense system by DPE Medical | |
Slope angle range: | 0 to 26 degrees | Sensors: | 9 modules |
Stairs height: | 0 to 16.5 cm (0 to 6.5 inches) | o Total number of sensors: 13,122 | |
Handrails height range: | 65-93 cm (25.6-36.6 inches) | Sensors’ weight capacity: up to 5Kg per cm^2 | |
Capacity (static): | 200 kg (440 lbs.) | Electrical requirements: | 100-240V, 50/60Hz, 4A max |
Unit weight: | 388 kg (853 lbs.) | Operating interval: | 2 min on / 18 min off |
