Manufactured By :
EMS Electro Medical Systems, Switzerland
Available Options :
Invalid Quantity
This product is not available in stock.

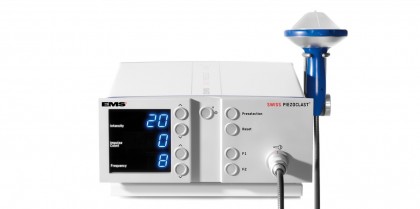

SWISS PIEZOCLAST
IN DEPTH WITH FOCUSED SHOCK WAVE THERAPY. ARE YOU INTERESTED?
SWISS PIEZOCLAST®: treat deep musculoskeletal indications efficiently and comfortably with the Focused ESWT solution.
Accurate
Deliver energy only where needed thanks to focused Shock Waves
Deep
Treat pathologies down to 80 mm
Pain free
Obtain comfortable treatments thanks to piezoceramic generated focused Shock Waves
Technical Data
Model | SWISS PIEZOCLAST® |
Manufacturer | RICHARD WOLF GmbH |
Product reference | FT-204W |
Technology/ies | Focused ESWT with piezoelectric generator |
Controls | LCD screen with frequency and pressure controller |
Frequency range | 1 - 8 Hz |
Intensity level | 1 - 20 |
Impulse range | 500 – 9500 |
Energy output | Positive Energy Density: Up to 0.42mJ/mm2 Total Energy Density: Up to 0.82mJ/mm2 |
Cavitation | Down to 8cm |
Product Features | > Piezoceramic technology delivering large cigar-shaped (5dB) Shock Waves and high cavitation levels > High range of intensity and energy delivered > Less painful than Radial devices > The original PiezoClast with its "easy to read" LCD screen |
Configuration | > 1 Therapy Source > 1 set of 8 gel pads of 5 / 10 / 15 / 20 / 25 / 30 / 35 / 40 mm diameter > Test cylinder |
Dimensions in [mm] | H. 170 x W. 395 x D. 400 |
Weight in [kg] | Approx. 14.5 Kg (unit only) |
Classification | 93/42 EEC: Class II b EN 60601-1: Class I |
Power supply | 100 - 127 - 220 - 240 V AC 50-60 Hz |
Operating conditions | +10°C to +35°C and 30% to 75% relative humidity. 700 hPa to 1060 hPa air pressure |
Storage and transport conditions | +5°C to +40°C and 10% to 90% relative humidity. 700 hPa to 1060 hPa air pressure |
Fuses | T 3.15 L |
If you are interested to buy products in the United States of America, please contact: | Electro Medical Systems Corporation, 11886 Greenville Ave Suite 120 Dallas, TX 75243 Toll-Free 1 800 367 0367 |
