Fast-track treatments thanks to free selection of frequency, air pressure and impulses:
| Model |

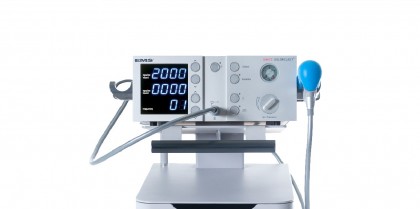

Swiss DolorClast® Classic |
| Manufacturer |
EMS Electro Medical Systems SA |
| Product reference |
FT-174 |
| Technology/ies |
Radial ESWT pneumatic with external compressor |
| Controls |
LCD screen with frequency and pressure controller |
| Clinical Studies |
26 Randomized Controlled Trials - More than 125 Publications |
| Frequency range |
1 - 20 Hz |
| Air pressure range |
1 - 4 bar |
| Impulse range |
500 – 9500 |
| Energy output |
Positive Energy Density
EVO BLUE 15mm: Up to 0.18mJ/mm2 | 15mm focus: Up to 0.28mJ/mm2
Power+ 15mm: Up to 0.4 mJ/mm2 15mm | focus: Up to 0.55 mJ/mm² |
| Cavitation |
Increases with frequency, down to 4 cm |
| Product features |
> User friendly Interface thanks to buttons and manometer
> The original DolorClast with its ""easy to read"" LCD screen
> High range of settings: from 1 Bar - 4 Bar |
| Configuration |
> 1 Swiss DolorClast® Evo Blue Handpiece
> 1 Cart with Gel Bottle & Cable Holder
> 1 Oil Compressor
> 1 Pneumatic Foot Pedal |
| Option |
> Swiss DolorClast® Power+ Handpiece
> Transportation Case
> Oil Free Compressor |
| Dimensions in [mm] |
H. 142 x W. 390 x D. 340 |
| Weight in [kg] |
Approx. 8.7 Kg (unit only) |
| Classification |
93/42 EEC: Class II b
EN 60601-1: Class I |
| Power supply |
100 - 240 V AC 50-60 Hz |
| Operating conditions |
+10°C to +40°C and 30% to 75% relative humidity |
| Storage and transport conditions |
-10°C to +40°C and 10% to 95% relative humidity. 500 hPa to 1060 hPa air pressure |
| Air supply |
5 - 6 bar (5000 - 6000 hPa)
30 Nl/min at 4 bar |
| Fuses |
Ø 5 x 20 mm, 250 V AC (Phase and Neutral)
1.6 AT |
| If you are interested to buy products in the United States of America, please contact: |
Electro Medical Systems Corporation, 11886 Greenville Ave Suite 120 Dallas, TX 75243 Toll-Free 1 800 367 0367 |
For more information:
https://www.ems-dolorclast.com/en/products/swiss-dolorclast-classic
